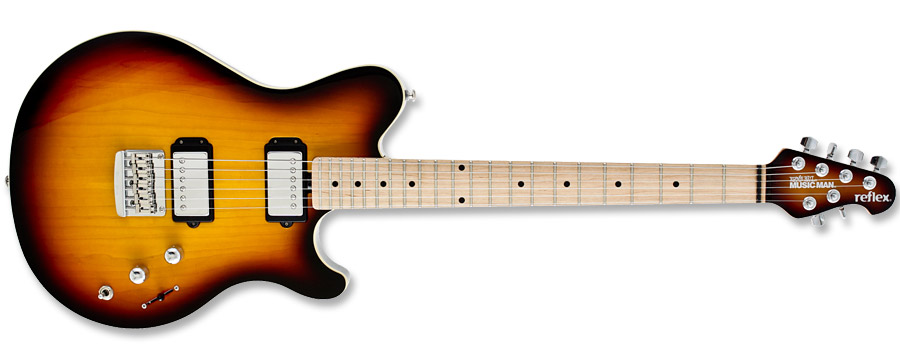

Introducing the Ernie Ball Music Man Reflex. The Reflex features a lightweight body, dramatic styling, and state-of-the-art electronics not found on any other instrument. The epitome of form and function, this new guitar sports two Di Marzio custom humbucking pickups, offering 10 very distinct sounds. Utilizing a 5-way lever pickup selector and series/parallel toggle switch, you can custom shape and color your tonal options like never before. The Music Man design team has engineered optimal contours, weight and balance, making this instrument very comfortable to play.
The Reflex guitar offers a classic bolt-on design, with a slightly larger, basswood chambered body, mahogany tone block, bound maple top, which together provide maximum resonance and tight, defined low end.
Ernie Ball Music Man Reflex features:
- Size: 12-7/8″ wide, 1-3/4″ thick, 37-3/4″ long (32.7 cm wide, 4.5 cm thick, 95.9 cm long)
- Weight: 7 lbs, 0 oz (3.18 kg) – varies slightly; 7 oz (0.2 kg) more with tremolo
- Body Wood: Chambered basswood with maple top and mahogany Tone Block
- Body Finish: High gloss polyester
- Body Colors: Black, White, Vintage Sunburst, Vintage Gold
- Body Bindings: Black, Vintage Sunburst, Vintage Gold – Cream; White – Black
- Bridge: Standard – Music Man® strings-thru-the-body bridge of chrome plated, hardened steel with bent steel saddles; Optional – Music Man® vintage tremolo of chrome plated, hardened steel with bent steel saddles
- Scale Length: 25-1/2″ (64.8 cm)
- Neck Radius: 12″ (30.5 cm)
- Headstock Size: Only 5-7/8″ (14.9 cm) long
- Frets: 22 – High profile, medium width
- Neck Width: 1-5/8″ (41.3 mm) at nut, 2-1/4″ (56.9 mm) at last fret
- Neck Wood: Select maple neck
- Fingerboard: Select maple or rosewood
- Neck Finish: Gunstock oil and hand-rubbed special wax blend
- Neck Colors: Matching painted headstock
- Tuning Machines: Schaller M6-IND locking
- Truss Rod: Adjustable – no component or string removal
- Neck Attachment: 5 bolts – perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
- Electronic Shielding: Graphite acrylic resin coated body cavity and aluminum control cover
- Controls: 500kohm volume and tone – .022µF tone capacitor
- Switching: 5-way lever pickup selector; 2-way toggle series/parallel selector
- Pickups: HH – 2 DiMarzio custom humbucking with chrome cover and Music Man pickup rings
